一、产品特点与用途
XY-SS系列三足式离心机为人工上部卸料、间歇操作的过滤式离心机。适合分离含固相颗粒≥0.01毫米的悬浮液，固相颗粒可为粒状、结晶状或纤维状等形态，也可供物品（如纱束、纺织品等）的脱水。该系列离心机具有结构简单，操作方便，各操作工序可按要求任意调整，滤渣能得到充分洗涤，固相颗粒不易破损，适应性强等特点。广泛应用与化工、轻工、食品、制药、纺织、冶金等行业。
XY-SSModel Tripod Centrifugal Machine is top unloading,intermittent operation filtering type one.It is suitable for soparating the milk liquid which contains0.01mmsolid grains.The solid grains can be grain,crystal or fiber stat.The machine is also used in dehydrating of materials such as yarn,textile and others.The series centrifugal machines have characteristics,such as it has simple structure,and convenient operation,each operation program can be adjusted at will,the filtered slag can be washed completely,the solid grain can not be broken easily,it has strong application and etc.It is widely used in chemical,light-ind-ustry,food,pharmacy,textile,metallurgy and other trades.
二、结构与原理
电动机通过离合器带动转鼓高速旋转，物料由上部加入转鼓，在离心力作用下趋向鼓壁，其中液相穿过滤布和鼓壁滤孔排出，固相截留在转鼓内，停机后人工卸除。
The motor drives the tumbler to rotable at high speed through clutch.The materials are fed into the tumbler through the top port.They are throw to the wall under the function of centrifugal force.The liquid is discharged from the filtering holes through the filtering cloth.The solid materials are remained into the tumbler.After the machine is stopped stopped,the solid materials are unloaded by man.
1. 电动机 2. 三角胶带 3. 起步轮 4. 闷盖 5. 离心块 6. 主轴带轮 7. 放水管接头
8. 无基础三角地盘 9. 柱脚 10. 制动环 11. 摆杆 12. 大盘 13. 减震弹簧
14. 外壳密封圈 15. 柱脚罩 16. 制动手柄 17. 外壳 18. 拦液板 19. 转鼓筒体
20. 主轴罩 21. 转鼓底 22. 主轴螺母 23. 上轴承盖 24. 轴承座
25. 主轴26. 下轴承盖 27. 被动轮 28. 轴承 29. 减震器
三、订货须知
针对不同的分离要求，我们设计了相应型式供客户选择，因此客户在订货时，可对以下情况作出确认：
材质：与物料接触部位的材料可分为不锈钢、钛材、碳钢、衬橡胶、衬塑料、衬四氟等。
驱动方式：普通异步电动机、隔爆型异步电动机或变频防爆。电机安装分B3、B5二种。

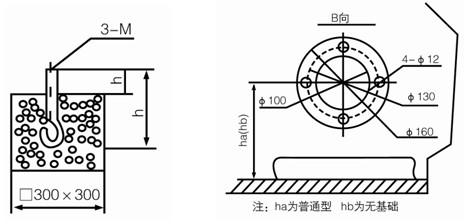

机座型式：普通机座、无基础。
制动：抱刹或胀刹。
We have designed various models for consumers'different separating demands.When our consumer consumer places an order for goods,he can decide the order as follow conditions:
Material:the material of the section touching the separated materials can have kinds of stainless steel,titanium steel,carbon steel,line with rubber,line with plastic and others.
Driving Method:commom induction motor,flame proof induction or frequency flame proof motor.The installation of motor has B3,B5 two kinds.
Frame Type:commom frame,no base.
Braking:band brake or expanding brake.
